D2BRAIN

D2 Brain is a smart & flexible automation system which is designed to control your home or industrial applications from a mobile or laptop anywhere. Our machine is capable of integrating logic, motion and communicating with other machines and control management systems. D2Brain is a step forward to customized automation, in which everything can be monitored and accessed remotely over the LAN, WAN and Wi-Fi.

What You Can Control

Lighting

Light up your life. Switch on the lights from your phone before entering your home or automatically turn off the lights when a room is unoccupied. On/Off, Dimming, Scene, Timer, Occupancy Sensor

Scene

Create the mood you want. Set the perfect ambience in your home using lighting scenes and scenarios. Home, Away, Morning, Night, Movie

Air Conditioning

Switch on the AC from your mobile before you reach home. Isn't is a cool feature!! On/Off, Temperature Control, Centralized Control, Occupancy Sensors

Security

Live with the peace of mind. Monitor and control the security and safety of your home to ensure that loved ones and personal property is always protected. Automated door locks, Video door phones, door sensors, smoke detectors, motion sensors

Entertainment

No More fiddling with multiple remotes, control your audio, video and home theatre equipment with one easy to use remote TV, DVD, Amplifier, Projector

Motor Control

Transform your living room Into home theater with motorized projector screen, automated curtains and projector lifts. Curtains, Blinds, Projector Screens, Garage doors

Appliances

Complete remote access to your electric appliances, help save on energy costs and keep your home safe. Geysers, Microwaves , Electric cooker , Air Conditoners.

Mobile & Internet control

Be at home even when you are away. Automation at your fingertips. Anytime. Anywhere. Smart Phone, iPad, laptop.

Sprinkler

No matter where you are, keep an eye on your home or office using IP cameras and wen enabled smartphone or PC. View, Record, night Vision, Motion, Detection

D2Brain Controller

L1R11

122 mm X 165 mm X 90 mm

L2R11F4

147 mm X 165 mm X 90 mm

L2R22

147 mm X 165 mm X 90 mm

L3R22F4

172 mm X 165 mm X 90 mm

L3R33

172 mm X 165 mm X 90 mm

L3R11D11F4

172 mm X 165 mm X 90 mm

L4R33F4

197 mm X 165 mm X 90 mm

L4R44

197 mm X 165 mm X 90 mm

L4R22D11F4

197 mm X 165 mm X 90 mm

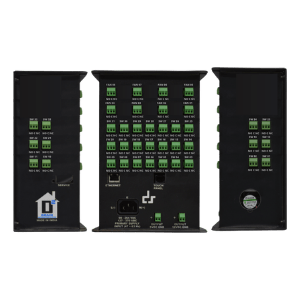

L5R33F8

222 mm X 165 mm X 90 mm

L4R11D22F4

197 mm X 165 mm X 90 mm

L5R44F4

222 mm X 165 mm X 90 mm

L5R55

222 mm X 165 mm X 90 mm

L6R44F8

247 mm X 165 mm X 90 mm

L5R22D22F4

222 mm X 165 mm X 90 mm

L6R33D11F8

247 mm X 165 mm X 90 mm

L7R44F12

272 mm X 165 mm X 90 mm

L6R66

247 mm X 165 mm X 90 mm

L6R22D22F8

247 mm X 165 mm X 90 mm

L7R55F8

272 mm X 165 mm X 90 mm

L7R33D11F12

272 mm X 165 mm X 90 mm

L7R44D11F8

272 mm X 165 mm X 90 mm

L8R55F12

297 mm X 165 mm X 90 mm

L7R77

272 mm X 165 mm X 90 mm

L7R33D22F8

272 mm X 165 mm X 90 mm

L8R66F8

297 mm X 165 mm X 90 mm

L8R44D22F8

297 mm X 165 mm X 90 mm

L8R55D11F8

272 mm X 165 mm X 90 mm

L9R66F12

272 mm X 165 mm X 90 mm

L8R88

297 mm X 165 mm X 90 mm

L8R44D22F8

297 mm X 165 mm X 90 mm

L9R77F8

322 mm X 165 mm X 90 mm

L9R55D11F12

322 mm X 165 mm X 90 mm

L9R66D11F8

322 mm X 165 mm X 90 mm

L9R99

322 mm X 165 mm X 90 mm

L9R55D22F8

322 mm X 165 mm X 90 mm

Types of Controller DB

Small
Controller
DB

Medium
Controller
DB

Large
Controller
DB

D2 Brain Automation System

Input Power Supply Specifications

Voltage Range
90~264 VAC ; 127~370 VDC
Frequency Range
47~63 Hz
Efficiency
86%
AC Current
1.8A/115 VAC; 1.0A/230 VAC
Inrush Current
Cold Start 60A / 230VAC
Leakage Current
<2mA / 240VAC
Universal AC Input / Full Range
Protections :
Short Circuit
Overload
Over Voltage

One D2Brain :
Power Controller
Actuators
Smart UI Interface
Keypad Interface
IFTTT Enabled
Voice Enabled

User Friendly Configurations
Easy Installation / Detachable Connectors
Android ; IOS and Windows Application
3rd Party Integration Over TCP/IP Protocol
3 Years Warranty

Input Power Protection

Over Load
115 ~ 160%
Protection Type
Hiccup Mode,Auto Recovery
Over Voltage
Shut Down O/P Voltage
Temperature
-30~+70 Deg C
Humidity
20~90%RH Non-Condensing
Storage T & H
-40~+85 Deg C;10~95% RH
Temp Coefficient
+-0.03% / Deg C
Vibration
10 ~ 500 Hz, 2G 10Min.
Safety
UL60950-1 , TUV approved
Withstand Voltage
I/P-O/P : 3KVAC

Output Relay Channel Specification

Contact
1 Form C ( NO C NC )
Contact Material
Silver Alloy
Contact Rating
230 VAC / 24 VDC
Contact Current
7A Cont@230 VAC / 24 VDC
Maximum
10A
Maximum Power
2300VA
Life Expectancy
1,00,00,000 Operations
Isolation
1500 VRMS
Operation Time
50 milli Sec
Temperature
-40 Deg C to +70 Deg C

Output Fan Channel Specification

Contact
1 Form A(NO C) + Capacitive
Contact Material
Silver Alloy + Zinc Aluminum
Contact Rating
230 VAC / 24 VDC
Contact Current
5A Cont@230 VAC / 24 VDC
Maximum
7A
Maximum Power
1250VA
Life Expectancy
1,00,00,000 Operations
Isolation
1000 VRMS
Application
Hum-Free Step Type
Capacitive Steps
8 Step Speed (0% to 100%)

RS 485 D2Brain Proprietary Keypad Interface Specification

Protocol
RS 485 Modbus
Terminology
Proprietary
Quantity
Max 16 Keypad / Controller
Switches
8 Switches / Keypad
Operations
User Programmable
Indicators
Red ( OFF ) , Green ( ON )
Touch Indicators
Yellow ( Touch )
Touch
Capacitive Feather Touch
Front Top
Designer Glass Bezel
Size
2Mod ( 90 MM L x 70 MM H )

Output Dimmer Channel Specification

Contact + Triac
1 Form C (NO C NC) + Triac
Technology
Leading Edge Phase Cut
Contact Rating
230 VAC 50 Hz
Contact Current
7A Cont@230 VAC
Maximum
10A
Maximum Power
2300VA
Temperature
-40 Deg C to +125 Deg C

Output Power Channel Specification

Output Voltage 1
5V DC / 1 A
Output Voltage 2
12V DC / 1A
Isolation
Non Isolated

D2Brain IR Channel Specification

Power Input
5 to 16V DC @ 300mA
IR Codes
Application Library Inbuit
IR Interface
3 Independent IR Output
Contact
3.5 mm Stereo Jack
Sensor
IR Emitters
Length
90 Mtr Maximum

3rd Party Integration Specification

Protocol
GET / POST
Interface
TCP / IP LAN
Client
3 Simultaneous
API
Custom Protocol
Voice
IFTTT Open API
3rd Party
Creston , RTI , Kramer Etc..

D2Brain Channel Requirement

Lights On / Of
1 Relay Channel
Light Dimming
1 Dimmer Channel
Light Color Change
1 Relay Channel
RGB Control
1 IR Channel
Fan On / Off + Speed
1 Fan Channel
EM Door Lock
1 Relay Channel
Digital Door Lock
1 Relay Channel
Vertical Curtain Motor
2 Relay Channel
Horizontal Curtain
2 Relay Channel
Garrage Rolling Shutter
2 Relay Channel
Car Parking sliding
1 Relay Channel
AC Control On / Of
1 Relay Channel
AC Temperature
1 IR Channel
VRV/ VRF AC Control
1 IR Channel
TV Control
1 Relay Channel
TV Remote Control
1 IR Channel
Music Speaker On/ Of
1 Relay Channel
Geyser Control
1 Relay Channel
Pressure Pump Control
1 Relay Channel
Swimming Pool Control
3 Relay Channel
Fountain Control
1 Relay Channel
Sprinkler Control
1 Relay Channel
Television Lift
2 Relay Channel
Home Theatre Control
2 Relay Channel
Home Theatre Remote
2 IR Channel

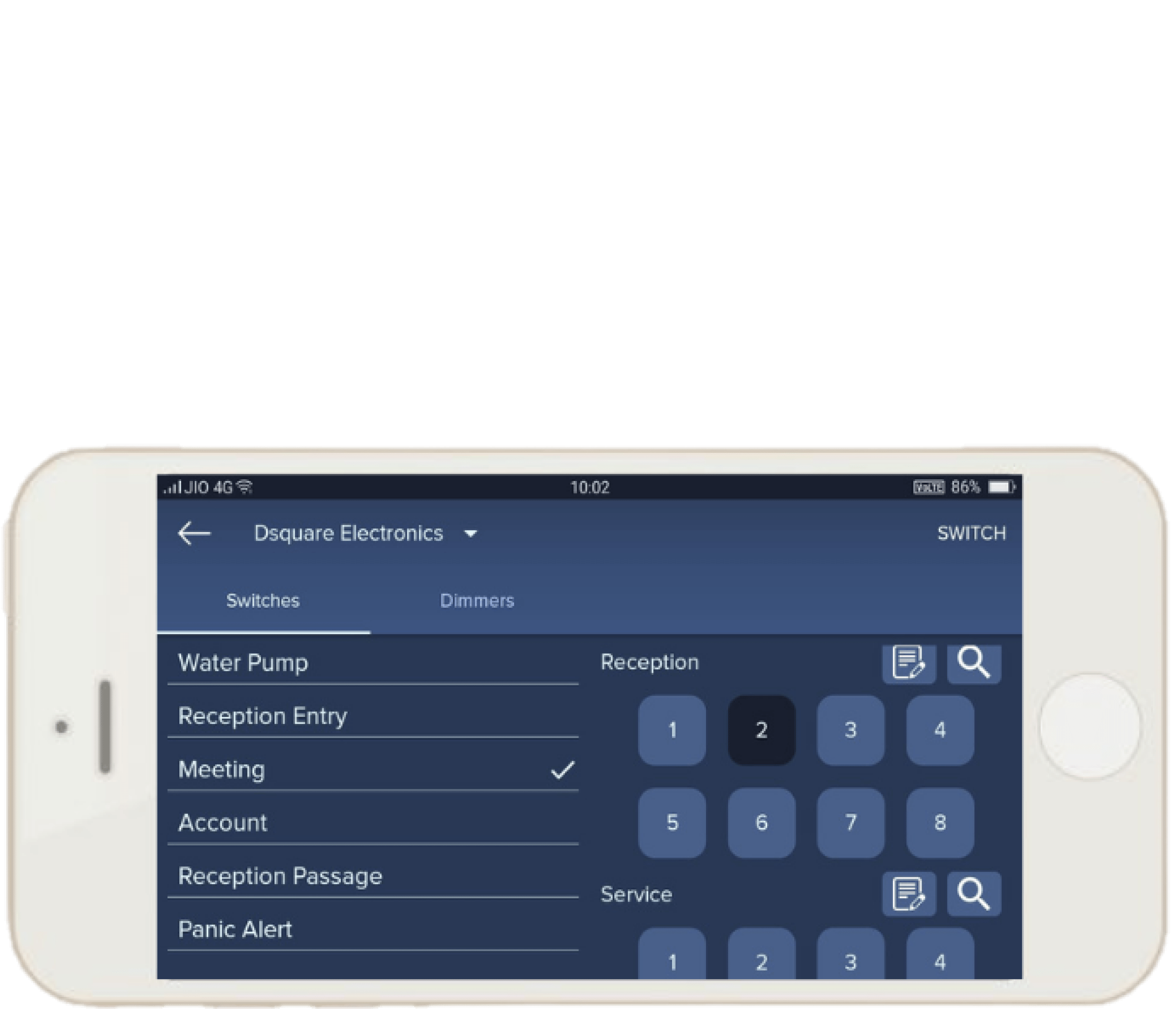

Android / IOS UI Specification

Users
Unlimited Users
Simultaneous Users
Max 25
Rename
User Friendly
Group / Room Creation
User Friendly
Scene Creation
User Friendly
Synchronization
Instantaneous
Feedback
2 Way 70 mSec
Search Option
In Build Bubble Short
Custom Image
User Friendly
Master Creation
User Friendly
Programming
No Programming Req
Switch Allocation
User Friendly
IR Remote
Unlimited Selection
Scheduling
User Friendly
Multiple Controller
Single Application
Max Controller
10 Per App
Personalization
User Friendly
Upgrades
No Extra Cost
